Channel Trading EA Overview
Choose how price interacting with the Channel Indicator becomes an entry signal. Channel Trading EA for MetaTrader 4 and MetaTrader 5 offers configurable rules based on the indicator’s upper and lower bands. Its entry modes distinguish between crossing outside a band, following a previous band’s touch with a directional candle, returning through a band, and simply being outside the channel.
The guide describes this EA as non-optimized: settings must be selected and tested for the intended market and timeframe. An optional additional channel filters permitted trade direction, while reset rules can restrict repeat entries. These controls qualify the chosen entry strategy rather than replacing it.
How the Channel Trading Entry Logic Works
Select a Channel Type
The following conditions preserve the manual’s normal buy and sell directions. Strategy 1 uses the guide’s explicit open/close inequalities, not an assumed reversal back inside the channel.
| Strategy | Buy condition | Sell condition |
|---|---|---|
| Strategy 1 | Open price is above the lower band and close price is below it: OpenPrice > LowerBand and ClosePrice < LowerBand. | Open price is below the upper band and close price is above it: OpenPrice < UpperBand and ClosePrice > UpperBand. |

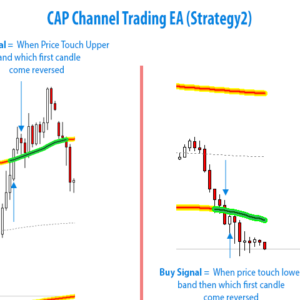

| Strategy 2 | The previous candle touches the lower band and the current candle is bullish. | The previous candle touches the upper band and the current candle is bearish. |

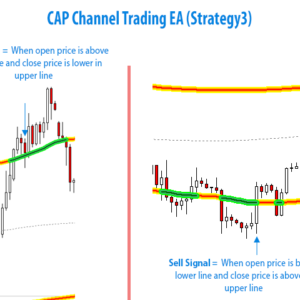

| Strategy 3 | The current candle closes/touches from the lower-band price to above it. | The current candle closes/touches from the upper-band price to below it. |

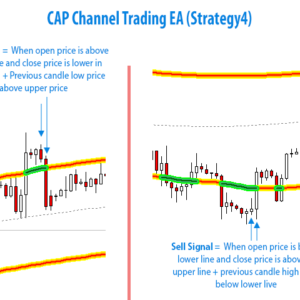

| Strategy 4 | The previous candle’s high is below the lower band, and the current candle closes/touches from the lower-band price to above it. | The previous candle’s low is above the upper band, and the current candle closes/touches from the upper-band price to below it. |

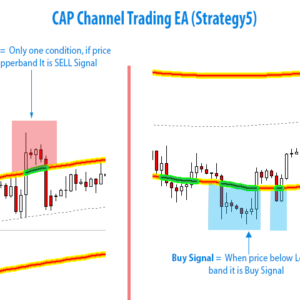

| Strategy 5 | Current price is below the lower line: CurrentPrice < LowerLine. | Current price is above the upper line: CurrentPrice > UpperLine. |
The guide calls Strategy 1 a band “touch,” but its formulas describe open-to-close crossings outside the bands. It also uses “close/touch” for Strategies 3 and 4 without defining exact touch tolerances or execution timing. These descriptions are documentation-based, not source-code verification.
Configure the channel and direction filter
Channel TF selects the entry channel’s timeframe. Signal Bars [Channel] selects the evaluation candle: zero is the current running candle and one is the previous candle. Channel Deviations and Channel Minimum Bar Redraw are listed inputs, but their detailed behavior is not explained in the guide. Reverse Signal swaps the normal signal direction.
With Additional Channel For Filter enabled, an up channel permits buys only and a down channel permits sells only. Its Channel TF For Filter can differ from the entry timeframe. Number Of Candle For Filter controls the lookback used to assess direction; Minimum Points for Valid Filter is a points-based input, although its exact test is not specified.
Control when another entry is allowed
Open Trade After Reset makes the EA wait for a reset before trading again. Touch Midline waits for price to touch the channel midline. Trend Change works with the additional filter; the documented example blocks another buy after a buy until the channel changes to down. The guide does not fully define the corresponding sell sequence. See the Channel Trading EA user guide before configuring these entry restrictions.
Channel Trading EA belongs to our General Trading EA range. The sections below describe its shared management framework. Available inputs differ by edition and installed version; use only the controls present in your EA and check the version comparison guide before choosing features.
Trading Direction and Position Sizing
Choose which signals the EA can trade
- Both Side (Long and Short): follow both buy and sell signals.
- Any Single Side: take the first qualifying direction rather than opening both sides together.
- Long Side Only: follow buy signals and ignore sell signals.
- Short Side Only: follow sell signals and ignore buy signals.
Set the initial trade size
Choose a fixed lot size or balance-based sizing using the documented XBalance and LotsizePerXBalance inputs. Balance-based sizing adjusts volume as the account balance changes; it is not the same as calculating a fixed percentage risk from the stop-loss distance. The general settings also include a maximum lot-size limit and a maximum-spread filter.
See initial trade and lot-size settings for the direction modes, sizing methods and input examples.
Common Trading Functions
The following sections explain the management tools documented for the General Trading EA range. Use the settings available in your edition and version; enabling every feature is not necessary for every strategy.
Multi-pair trading
Trade the chart symbol alone or enable multi-pair trading to monitor a configured list from one chart. Enter broker symbol names exactly, including any prefix or suffix, and separate pairs with semicolons. When multi-pair mode is enabled, the configured list determines which symbols the EA trades.
Read the multi-pair setup guide.
Initial trade limits and stop filters
Control when the EA may open new initial positions with running-trade limits, daily trade-count limits, profit/loss thresholds and same-candle restrictions. These entry-stop filters apply to initial trades; they should not be treated as a switch that automatically stops every grid trade or closes existing positions.
Explore the initial trade stop filters.
Trading sessions and days
Define trading windows and choose the days on which the EA can open trades. Session settings use your trading terminal’s time, not your computer’s local clock. Where the input is available, choose whether the time restriction applies to initial entries only or to initial and grid entries.
Configure trading times and days.
Economic news filter
Pause eligible new entries before and after selected economic news events. Configure the relevant currencies, event impact levels and pause windows. Automatic news downloads require the appropriate MetaTrader WebRequest permissions, and the broker-time configuration must be correct. News filtering does not remove the risk of volatility, gaps or slippage.
Read the news-filter setup and troubleshooting guide.
Optional Grid and Martingale Management
These tools change how exposure is managed after an initial entry. They are optional strategy settings, not a guarantee that a losing position will recover.
- Loss-side grid: add positions at configured intervals when price moves against the initial trade.
- Profit-side grid: add positions when price moves in favor of the initial trade. A reversal can still turn the combined position into a loss.
- Martingale: increase the size of a subsequent trade after a loss using the configured lot progression and reset rules.
- Shared grid controls: the common documentation covers grid drawdown-reduction rules and checks that restrict additional entries near existing grid trades. Confirm these inputs are present in your version before using them.
Read the guides for profit-side grid and its difference from loss-side grid, martingale settings, and shared grid controls.
Understand the added risk. Grid and martingale methods can increase position size, margin requirements and drawdown quickly. They can lead to substantial losses or loss of the trading account. Test the complete configuration on a demo account and set exposure limits before considering live use.
Take Profit, Stop Loss and Exit Controls
Configure how positions close
The common TP/SL settings include individual and average-position exits, with supported calculations based on points, percentages, ATR or currency amounts. Select the method appropriate to your strategy and check whether it manages an individual trade, one direction or a group of positions.
Virtual and broker-side stops are different. The documentation describes EA-managed virtual TP/SL and separate hard TP/SL options for initial trades. Virtual exits require the terminal and EA to remain running and connected; do not assume they provide broker-side protection when the terminal is offline. Check grid compatibility before enabling hard stops.
Read the TP/SL and profit/loss management guide.
Partial closing
Close a configured percentage of a position at staged profit levels instead of closing the entire position at once. The documented sequence supports up to three stages and remains subject to the broker’s lot-size limits. Review the restart behavior before relying on a partially completed sequence.
Learn how partial closing works.
Break-even and trailing stops
Use a profit trigger to move the stop toward the entry price or a configured offset. Break-even makes its adjustment once, while trailing settings can continue adjusting the stop as price moves favorably. These controls do not guarantee a particular exit price during gaps or fast markets.
Set up break-even and trailing.
Additional closing filters
The documented closing controls include scheduled exits, opposite-signal closing, profit/loss thresholds, equity limits and drawdown conditions. Unlike entry-stop filters, supported closing rules can close positions already open. Confirm each rule’s scope and trade-group settings before enabling it.
Review the additional close filters.
EA Configuration and On-chart Display
Use MagicNumber and trade comments to identify positions managed by the EA. When running multiple instances on the same symbol, assign distinct MagicNumbers to avoid management conflicts. The common settings also cover slippage and order-error checks; broker execution and market conditions still affect trade fills.
The optional on-chart display shows EA status, broker time, account information and trading activity. Configure its position and text size to suit your chart.
See EA configuration settings and the dashboard guide.
Before You Start
- Choose the correct MT4 or MT5 edition and review the Channel Trading EA user guide.
- Configure the indicator or pattern settings, entry mode, trading direction and initial lot size.
- Set your entry restrictions and exit rules. Leave optional recovery features disabled unless they are part of a strategy you have tested.
- Check broker symbol names, terminal time and any news-download permissions.
- Backtest and forward-test on demo using your intended broker conditions. Review drawdown and execution behavior, not only net profit.
For more input explanations, use our Common Function Glossary. Trading financial instruments involves a high level of risk and may not be suitable for all investors. Past performance is not indicative of future results. MeetAlgo provides automated trading software and tools for educational and automation purposes only. MeetAlgo does not provide investment advice, portfolio management services, or any regulated financial services. Always consult a licensed financial advisor before making trading decisions.
Custom Development
Need entry rules, filters or trade-management behavior beyond the standard Channel Trading EA setup? MeetAlgo offers custom development for modifications to an existing EA or a new trading system built around your requirements. Share your platform, entry and exit rules, risk controls and examples so we can assess the scope.
Request a custom development quote.
White Label Service
Want to offer a trading tool under your own brand? Contact MeetAlgo to discuss white-label customization for Channel Trading EA. Tell us about your branding and distribution plans so we can confirm the available customization, redistribution permissions, licensing terms and project scope.
Discuss your white-label project.
Any Questions?
Not sure which edition, entry mode or management setting fits your intended setup? Send us your platform, EA version, broker symbol and a short description of what you want the EA to do. Screenshots of the relevant inputs can help us understand your question.
Contact MeetAlgo support or start with the Channel Trading EA user guide.
